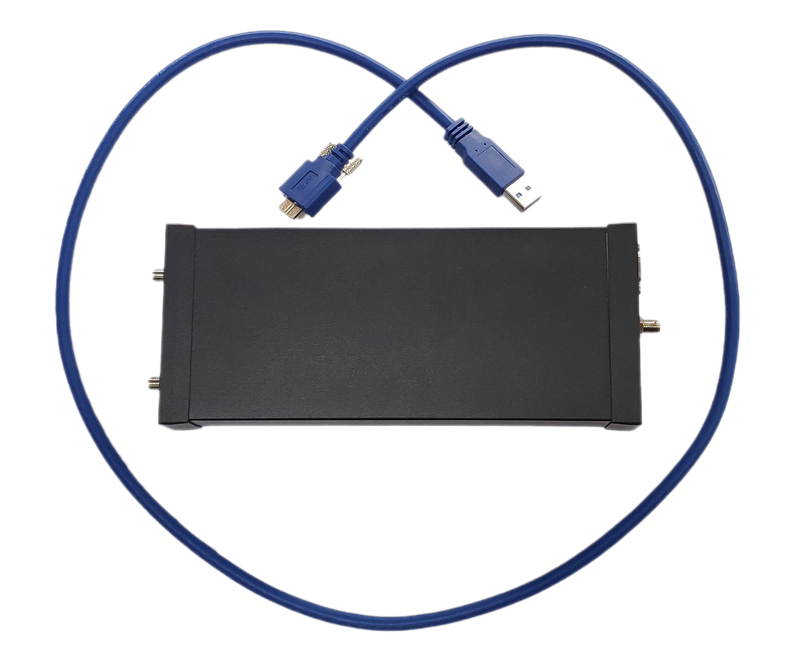

Frequency Range

9KHz～6000MHz

Analog tuning resolution

1KHz

IF analog bandwidth

40MHz

In band spectrum ripple

≤2dB  (IF 40MHz)

Digital bandwidth

40MHz、20MHz、10MHz、5MHz、2.5MHz、1.25MHz

Resolution Bandwidths (RBW)

2 Hz(BW:1.25MHz) ～ 15000Hz(BW:40MHz)

Sweep Speed

>60GHz/sec  (RBW:15K)

Frequency accuracy

±0.5ppm  (Room temperature, test after power on 5 minutes)

Phase noise

≤-98dBc/Hz@10KHz  (@1GHz)

Noise figure

≤5dB (> 10MHz)

Total gain

50±4dB

Total attenuation

60dB±4dB

Receiver Sensitivity

≤-130dBm/RBW:117Hz  (@1GHz, SNR:10dB)

Display Average Noise Level(DANL)

9KHz to 3MHz    –148 dBm/Hz

3MHz to 20 MHz   –156 dBm/Hz

20 MHz to 1.9 GHz  –160.6 dBm/Hz

1.9GHz to 4 GHz    –158 dBm/Hz + 2dB/GHz

4GHz to 6 GHz     –154 dBm/Hz + 2.5dB/GHz

Maximum input RF Power

+20dBm

SFDR(typical)

65dB

Gain control

MGC

2^nd order intercept point

≥62dBm  ∆f =240MHz

3^rd order intercept point

≥32dBm  ∆f = 8MHz

Output P_-1dB

≥14dBm

Residual spurious response

≤-110dBm (typical)

ADC sample rate

122.88 Ms/s、14-bit

RF Input Impedance

50Ω Nominal  (SMA connector )

Ref clock input

50Ω SMA, 10MHz, 5±2dBm

Trigger/Sync input

50Ω SMA, LVTTL IO support 1 PPS GPS input for time-stamping

GPIO (Optional)

J30J-15, reserve LVTTL IO ports for custom development

Power Consumption

≤1.5A(5V),(1) USB 3.0 port and (1) adjacent USB 2.0 or USB 3.0 port

Data/control port

USB3.0 Micro-B

Operating Temperature

-40℃～＋65℃

Storage temperature

-55℃～＋85℃

Size and Weight

195mm x 85mm x 35mm, 0.9kg

System Requirements

Windows® 7, 8, 10 or 11 operating system x64 version , 8 GB of RAM, Intel i5, 4th generation (Haswell) or later with a quad core processor, 2xUSB 3.0 port or 1xUSB 3.0 port and 1xUSB 2.0 port.

Note: RF recording using streaming I/Q requires the computer’s mass storage drive to have at least 246MB/sec of sustained write speed such as an SSD(Recommend NVME SSD), RAID-0,or RAID-5.
