iDSG506

iDSG506

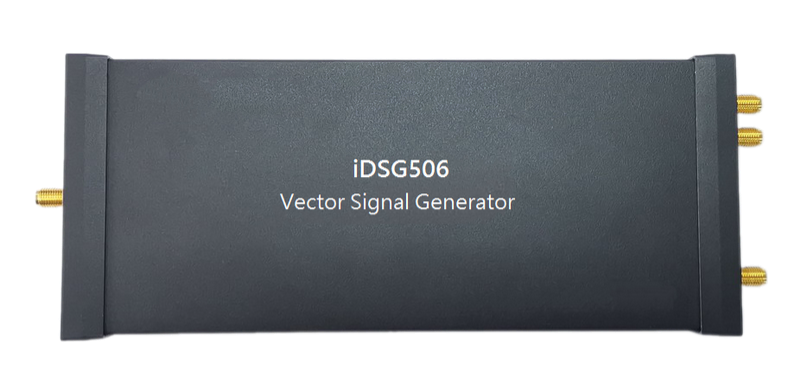

USB3.0 Portable Vector Signal Generator

Supported MODULATION TYPES

CW AM, FM, Pulse, Multitone, Sweep, AWGN, FSK, 2ASK, MSK ,4FSK, 8FSK, 16FSK, BPSK, DBPSK, QPSK, DQPSK, OQPSK ,Pi/4DQPSK, 8-PSK, 16-PSK, 16-QAM, 64-QAM, 256- QAM, 1024- QAM  and more.

CUSTOM MODULATION

Use the API to continuously stream I/Q data to the device at an arbitrary sample rate up to 63 MSPS, or use the software to load binary short int, or binary floating point I/Q file.

FREQUENCY RANGE

100 kHz to 6 GHz

MODULATION BW

50 MHz

TIMEBASE

Internal 10 MHz VCTCXO with digital

adjustment Stability over temperature: ±0.28 ppm

Aging: < 1 ppm/year typical

AMPLITUDE

Range: 0 dBm to -60 dBm (100kHz～30MHz)

Range: 10 dBm to -60 dBm (30MHz～6000MHz)

Accuracy: +/- 2 dB (0.5 dB typical) Baseband

flatness (20 MHz), ±0.25 dB typical Baseband

flatness (50 MHz), ±0.6 dB typical

EVM

0.3% typical (1 GHz carrier, 1 MSPS QAM 16, Alpha = 0.35, raised cosine)

Typical Phase Noise (1 GHz)

Offset      dBc/Hz

100Hz       -90

1kHz          -112

10kHz       -119

100kHz   -124

1 MHz       -141

IO

1 * SMA :50Ω trigger input reserved, function can be customised
1 * SMA :50Ω trigger output reserved, function can be customised
1 * SMA :support 10MH external reference clock input, power: 5±2dBm
1 * J30J-15: multiple expansion IO port, support GJB2991A-2008  B  time code input

Non-harmonic spurious: -50 dBc typical for most signals.

Harmonics: -38 dBc typical

Size and Weight: 186mm x 80mm x 20mm, 0.5kg



System Requirements

Intel i5, 4th generation (Haswell) or later with a quad core processor, 8 GB of RAM, 1x USB 3.0 port , Windows 7, 8, 10 or 11 operating system x64 version.
